Gravitational Smoke Extraction Systems
Smoke extraction systems are a key element of fire safety that saves lives. During a fire, smoke can fill an entire room within minutes, leading to poisoning from toxic gases, reduced visibility, and disorientation. Most fire victims do not die from the fire itself but from inhaling smoke.
Safety at every stage
A well-designed smoke extraction system, such as the NSHEV solutions offered by Aluco System (Natural Smoke and Heat Exhaust Ventilators), ensures rapid removal of smoke and heat. This enables safe evacuation and efficient intervention by emergency services.
Advantages of our solutions
Smoke extraction systems from Aluco System, including ALUCO FIRE smoke vents, stand out for their reliability, durability, and high-quality construction. They meet European safety standards and guarantee effective operation in challenging conditions, even after many years of use. Additionally, they support daily ventilation of rooms, enhancing their functionality.

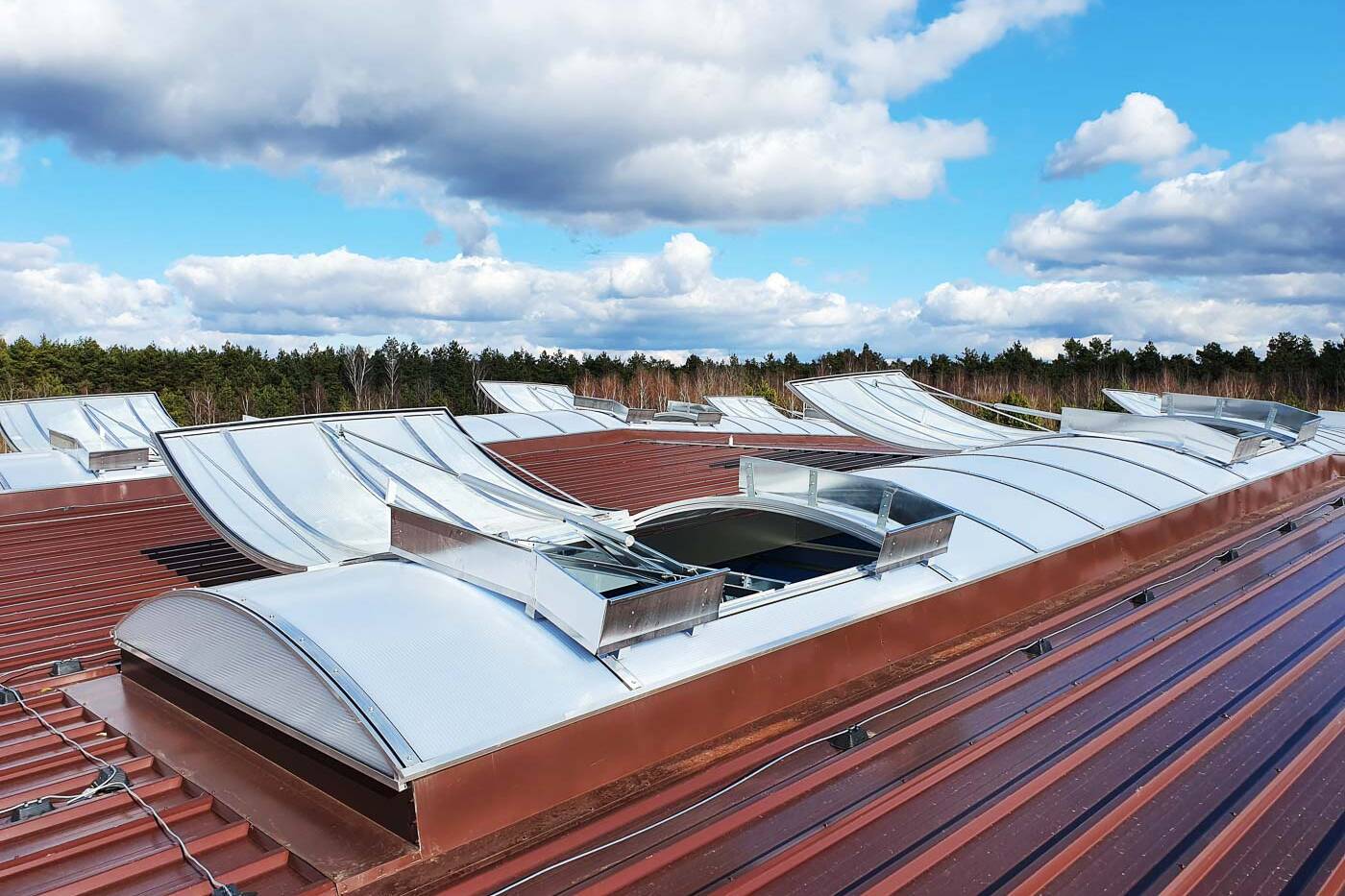

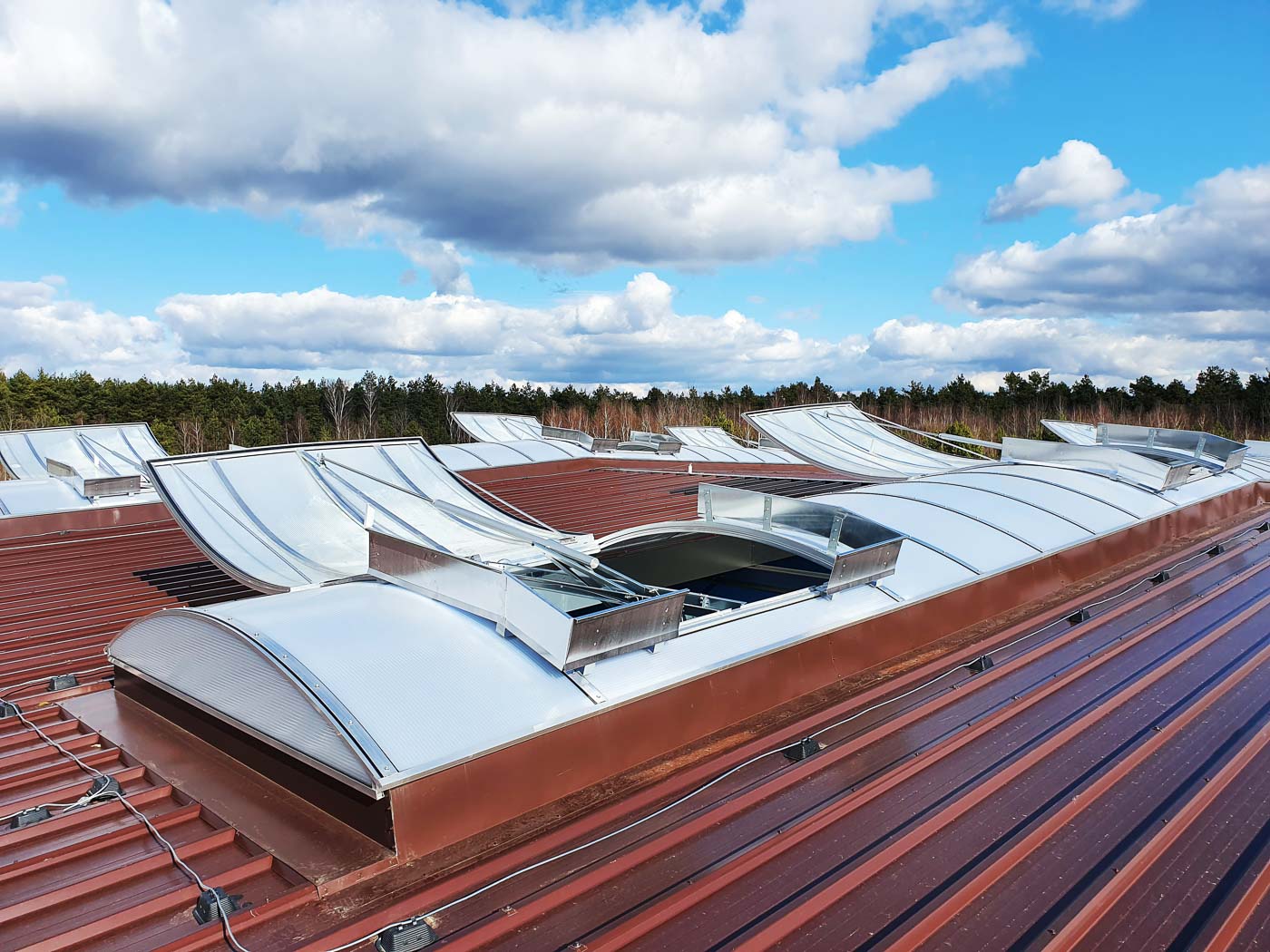

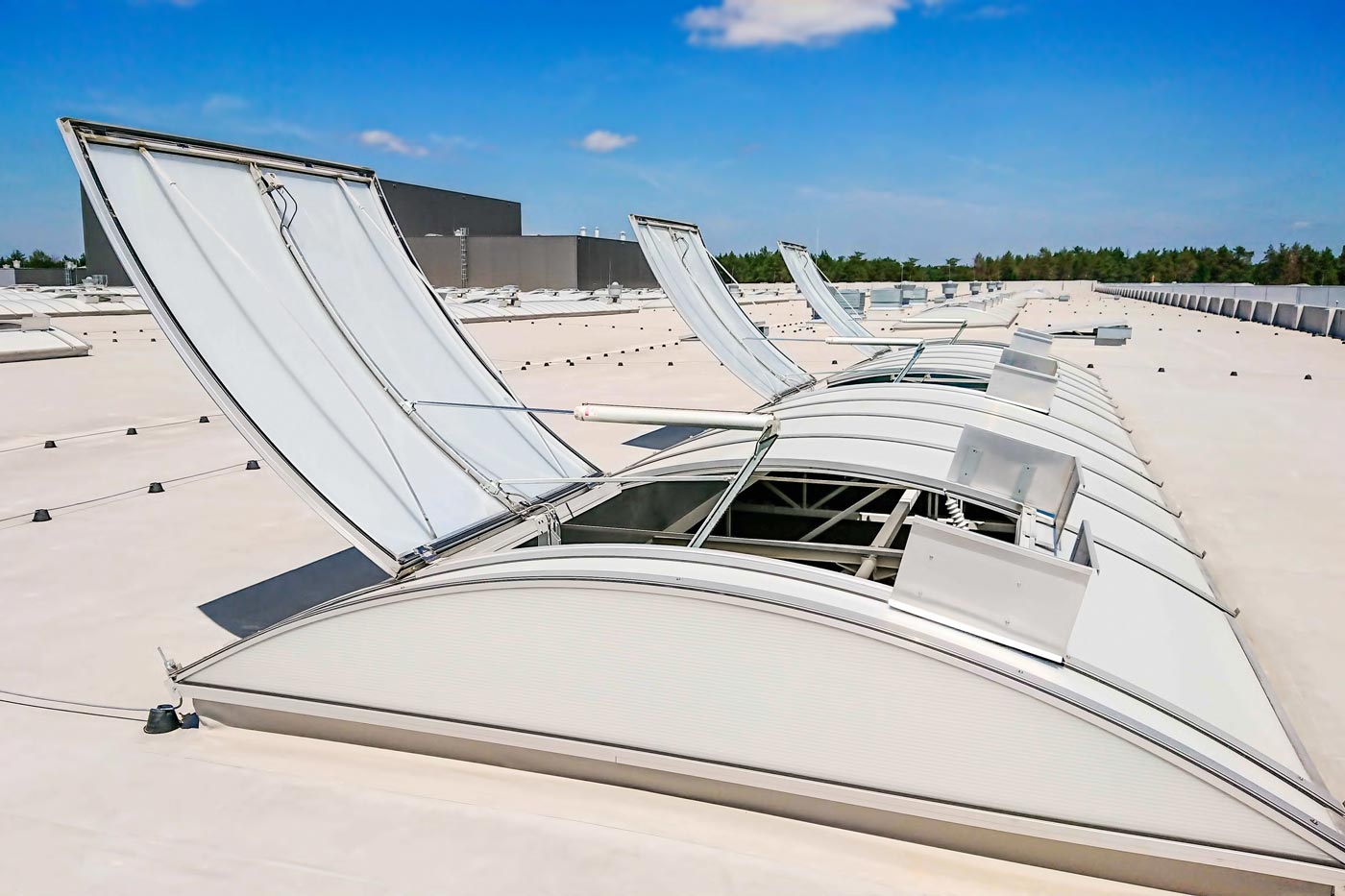

ALUCO FIRE SL
Smoke Extraction Vents for Skylights

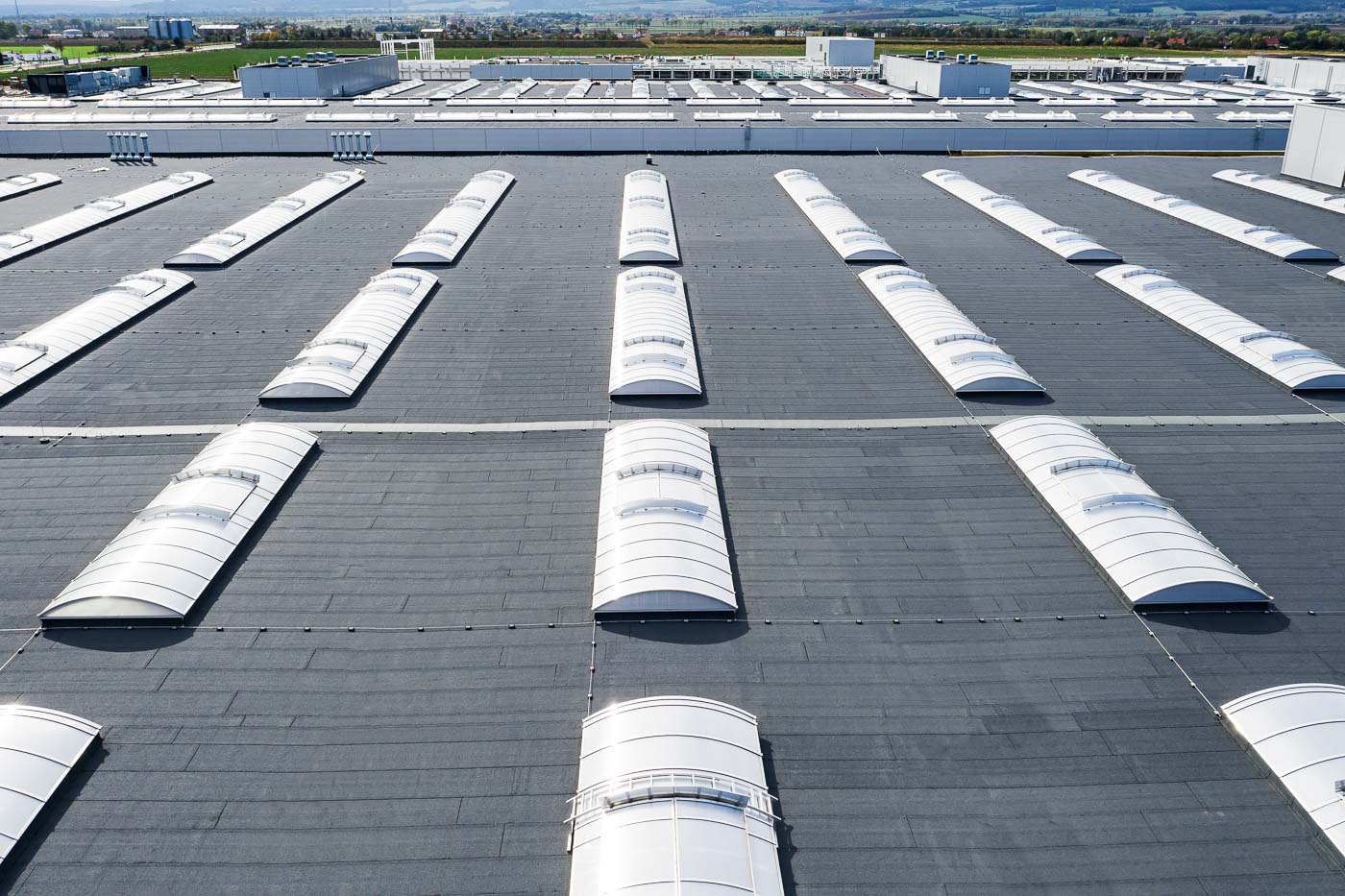

Smoke extraction vents dedicated to skylights combine two benefits – fire safety and effective natural daylight illumination of the building.
ALUCO FIRE SL is an advanced smoke extraction vent designed for effective removal of smoke, heat, and toxic gases from buildings during fire emergencies. They are designed for installation in arched skylight strips, making them an excellent solution for industrial, commercial, and public utility buildings.
Certification and Safety
The product meets strict European standards, including requirements for NSHEV systems, ensuring reliable operation under the most challenging conditions. Thanks to its thoughtful design, ALUCO FIRE SL also supports daily room ventilation.
Versatility and Adaptability
ALUCO FIRE SL is a solution designed with a variety of architectural and technical requirements in mind. Thanks to its modular design and the ability to customize dimensions, these vents are compatible with many types of roof structures. Its advanced design allows for use in both new projects and during the renovation of existing buildings, where precise adaptation to the building’s specifics is essential.
Performance and Durability
- Made of high-quality and durable aluminum profiles, ensuring stability and longevity.
- High aerodynamic coefficient: up to 0.75, increasing the efficiency of smoke extraction.
- Opening angle: up to 160°, ensuring maximum efficiency of smoke extraction.
- Heat resistance: class B 300.
- Load classification: SL 2000 (snow), WL 1500 (wind).
- Certified mechanical durability: 10,000 cycles in ventilation mode.
Thermal Insulation and Safety
- The vents have excellent thermal insulation properties, reducing heat loss in the building.
- Option to equip with aerogel panels, further improving insulation.
- Optional anti-fall grids enhance safety during maintenance.
Elastyczność wymiarów i konstrukcji
- Vents available in single- and double-leaf versions, designed for installation in skylight strips.
- Maximum dimensions: up to 3500 mm x 3000 mm, allowing customization for various building types.
Control Options
- Available drive mechanisms: pneumatic or electric.
- The electric version allows precise control, e.g., partial opening of vents for daily ventilation.
ALUCO FIRE SL 1P
Single-Leaf Vents
The single-leaf variant of ALUCO FIRE SL 1P is a solution characterized by a compact design and lightweight construction. These vents are ideal for smaller skylight strips, where maximizing usable space and achieving high aerodynamic performance with minimal roof load is crucial.
ALUCO FIRE SL 2P

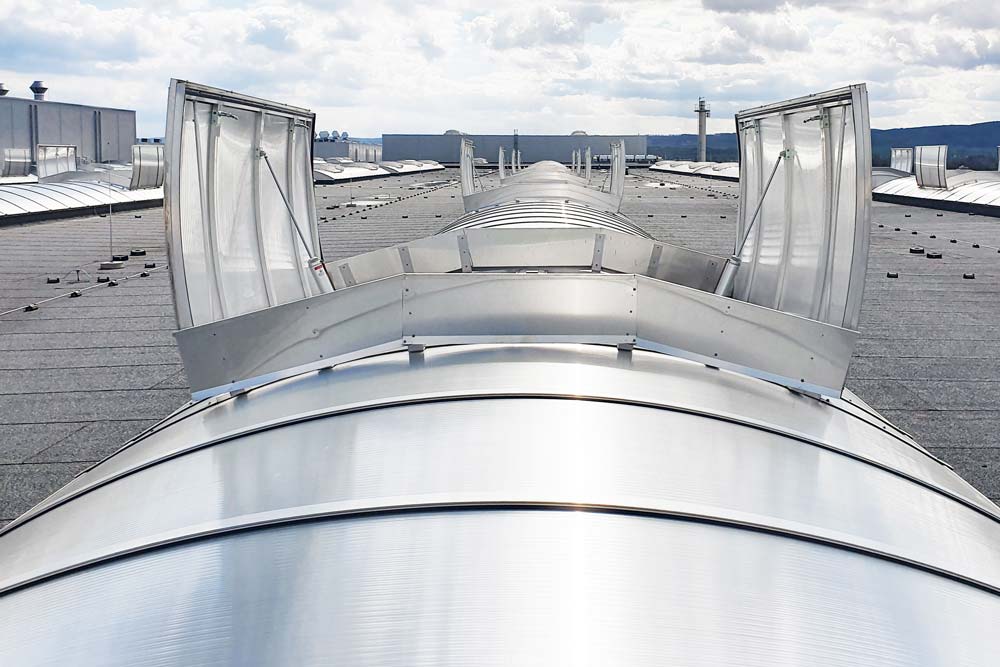

Double-Leaf Vents
The double-leaf ALUCO FIRE SL 2P vents offer a larger opening area, making them an excellent choice for buildings requiring intensive smoke and heat extraction. The use of two leaves allows for better roof space management and flexibility in adjusting the vent size to wide skylight strips.

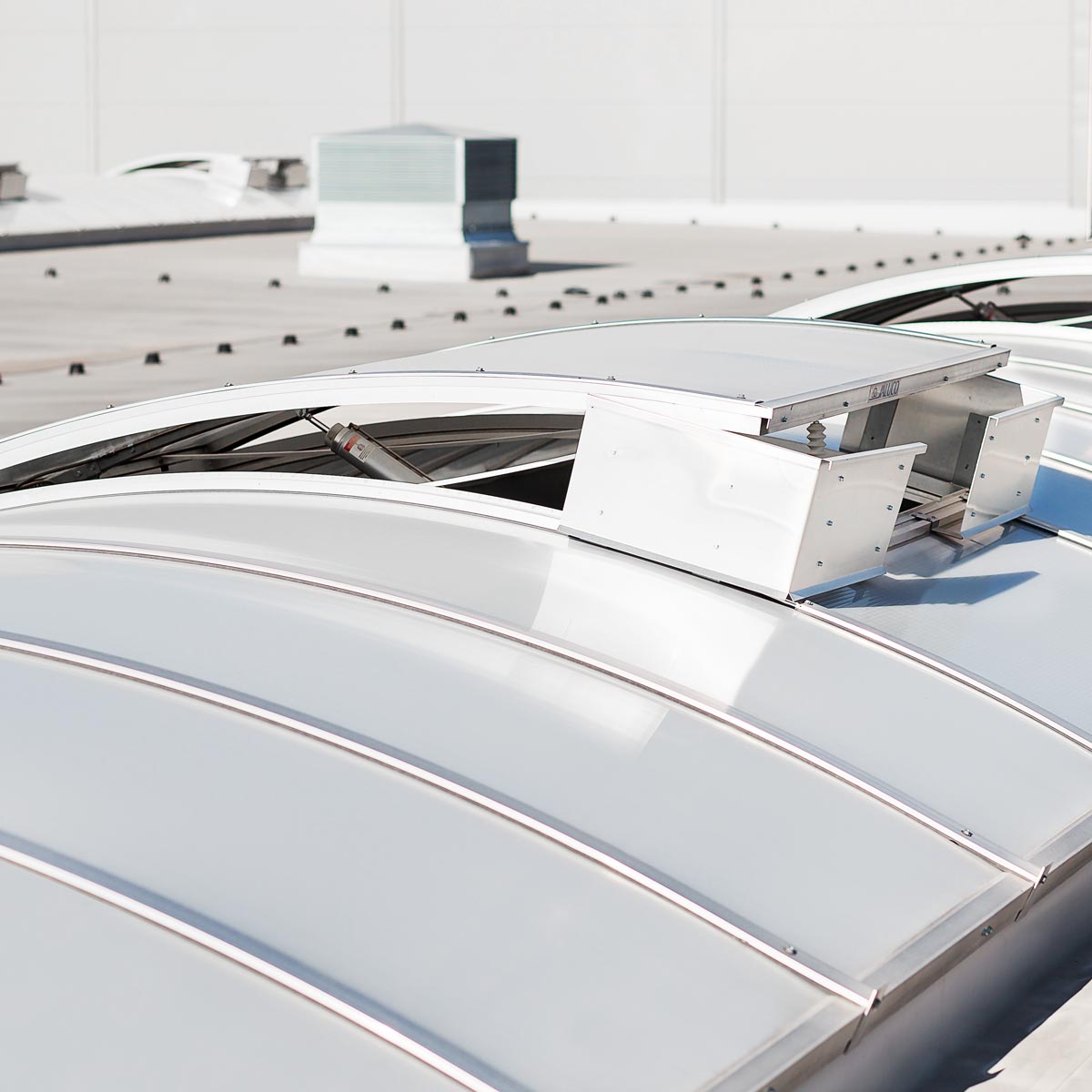

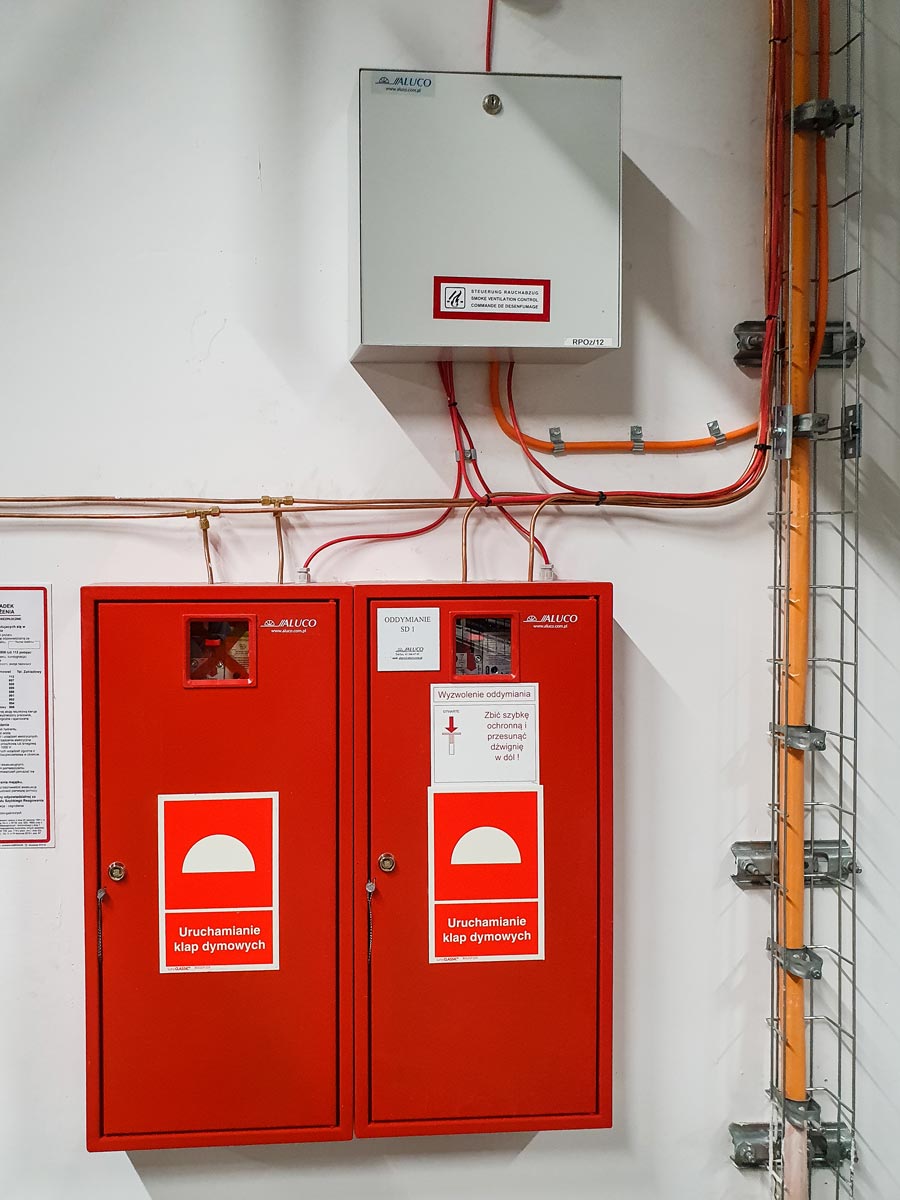

Control of Vents
The control of ALUCO FIRE SL vents can be fully automatic. The wings are lifted by pneumatic or electric actuators. The electric drive additionally allows the use of the vents for daily ventilation – by opening the vents to a preset angle.
ALUCO FIRE SL smoke vents are designed to meet the needs of large buildings with specific ventilation and fire protection requirements. Thanks to their flexibility and effectiveness, they are used in various sectors and types of buildings.
- Industrial and Warehouse Halls – An effective solution for production spaces and warehouses where the priority is quick smoke removal in case of fire, minimizing the risk of property damage and danger to employees.
- Shopping Centers and Commercial Buildings – Suitable for buildings used by a large number of people, ensuring safety during evacuation and increasing comfort through the daily ventilation function.
- Sports and Recreation Halls – Thanks to their large dimensions and high performance, the vents are ideal for large facilities with complex roof structures, requiring effective smoke and heat management.
- Public Utility Buildings – Hospitals, schools, cultural institutions, and other public spaces can rely on the reliability of ALUCO FIRE SL vents in emergency situations.
- Renovations and Thermomodernizations – The vents perform excellently in building revitalization projects, improving fire safety while maintaining required thermal insulation.
- Buildings with High Architectural Requirements – Their aesthetic design and ability to adapt to roof skylights make them suitable for buildings where both appearance and functionality are important.
Sterowanie klapami
Sterowanie klapami ALUCO FIRE SL może odbywać się całkowicie automatycznie. Skrzydła podnoszone są za pomocą siłowników pneumatycznych lub elektrycznych. Napęd elektryczny pozwala dodatkowo na wykorzystanie klap, do codziennej wentylacji – poprzez otwarcie klap tylko do zadanego kąta.
Klapy oddymiające ALUCO FIRE SL są zaprojektowane tak, by sprostać wymaganiom budynków o dużej powierzchni i specyficznych potrzebach wentylacyjnych oraz przeciwpożarowych. Dzięki swojej elastyczności oraz skuteczności znajdują zastosowanie w wielu sektorach i typach obiektów.
- Hale przemysłowe i magazynowe – Skuteczne rozwiązanie dla przestrzeni produkcyjnych i magazynów, gdzie priorytetem jest szybkie usuwanie dymu w razie pożaru, minimalizując ryzyko uszkodzeń mienia oraz zagrożenie dla pracowników.
- Centra handlowe i obiekty komercyjne – Odpowiednie do budynków użytkowanych przez dużą liczbę osób, zapewniają bezpieczeństwo podczas ewakuacji i zwiększają komfort dzięki codziennej funkcji wentylacji.
- Hale sportowe i rekreacyjne – Dzięki dużym wymiarom i wysokiej wydajności klapy są idealne do dużych obiektów o skomplikowanych konstrukcjach dachowych, wymagających efektywnego zarządzania dymem i ciepłem.
- Budynki użyteczności publicznej – Szpitale, szkoły, obiekty kulturalne i inne przestrzenie publiczne mogą liczyć na niezawodność klap ALUCO FIRE SL w sytuacjach awaryjnych.
- Modernizacje i termomodernizacje – Klapy świetnie sprawdzają się w projektach rewitalizacji istniejących budynków, umożliwiając poprawę bezpieczeństwa pożarowego przy zachowaniu wymaganej izolacyjności termicznej.
- Obiekty o wysokich wymaganiach architektonicznych – Ich estetyczna konstrukcja i możliwość dopasowania do świetlików dachowych pozwalają na zastosowanie w budynkach, gdzie liczy się wygląd i funkcjonalność jednocześnie.
Wszystkie świetliki w ALUCO SKYLIGHT mogą być wykonane w wersji z izolacją termiczną. Dzięki zastosowaniu przekładek termicznych oraz specjalnych materiałów, takich jak poliwęglanowe płyty komorowe czy wypełnienia aerożelowe, świetliki eliminują mostki termiczne i osiągają współczynnik przenikania ciepła nawet poniżej U < 0,5 W/(m²K).
ALUCO SKYLIGHT THERM jest idealnym wyborem do obiektów wymagających wyjątkowej termoizolacji. Dzięki tej opcji świetliki mogą sprostać najbardziej rygorystycznym normom energetycznym, jednocześnie zachowując estetykę i trwałość.

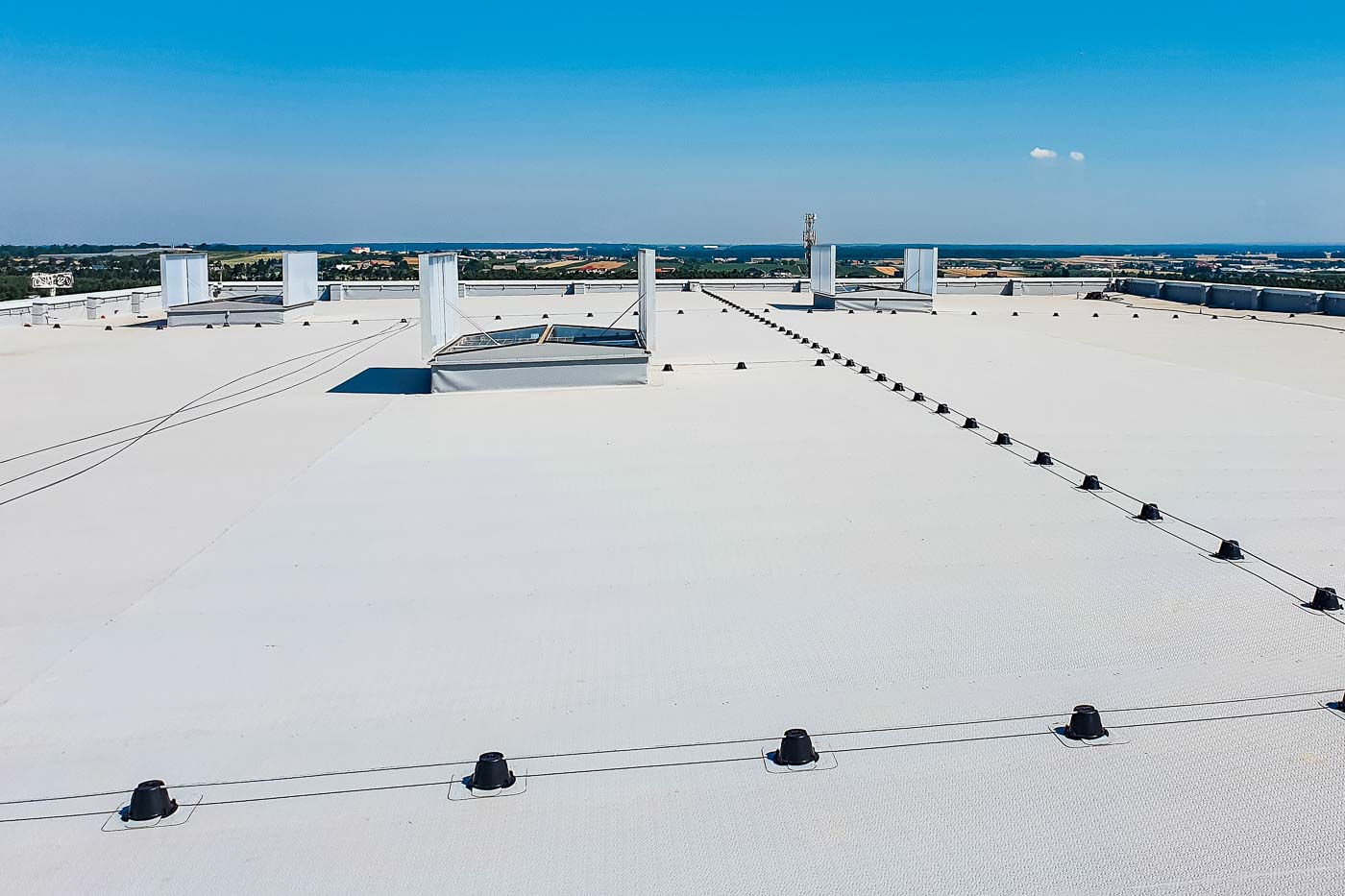

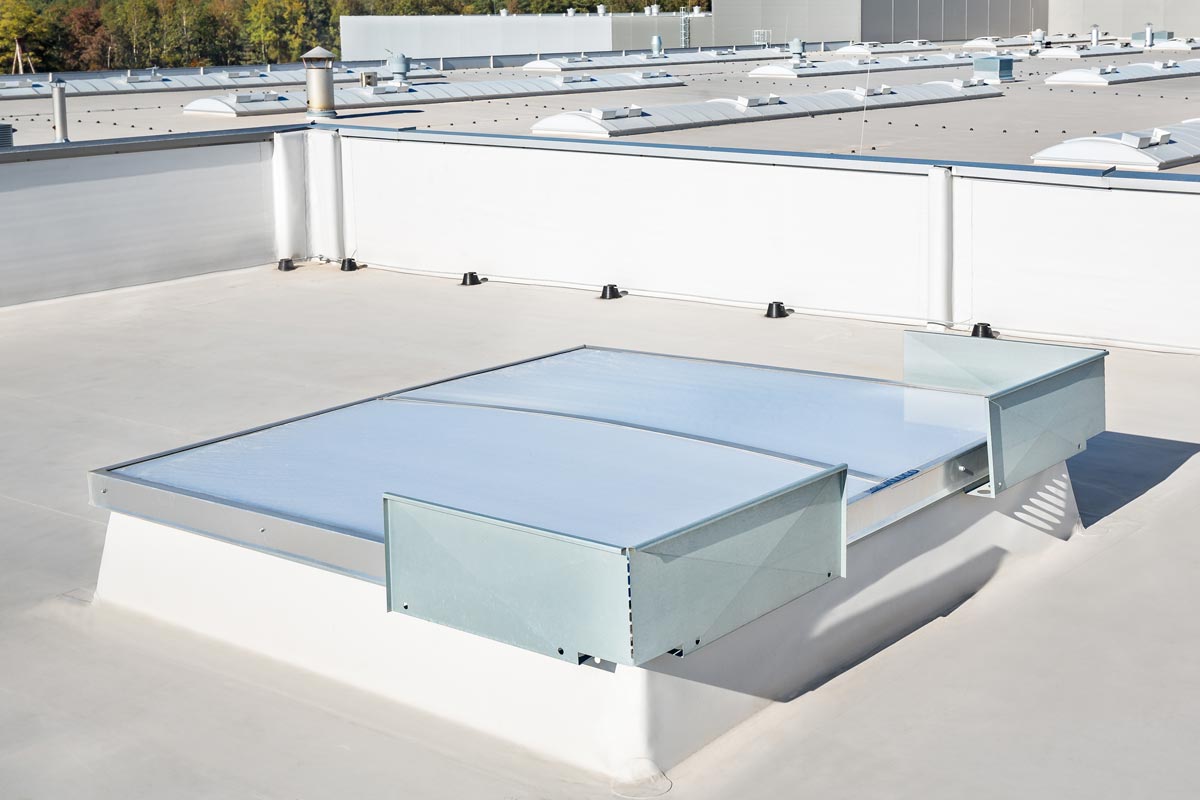

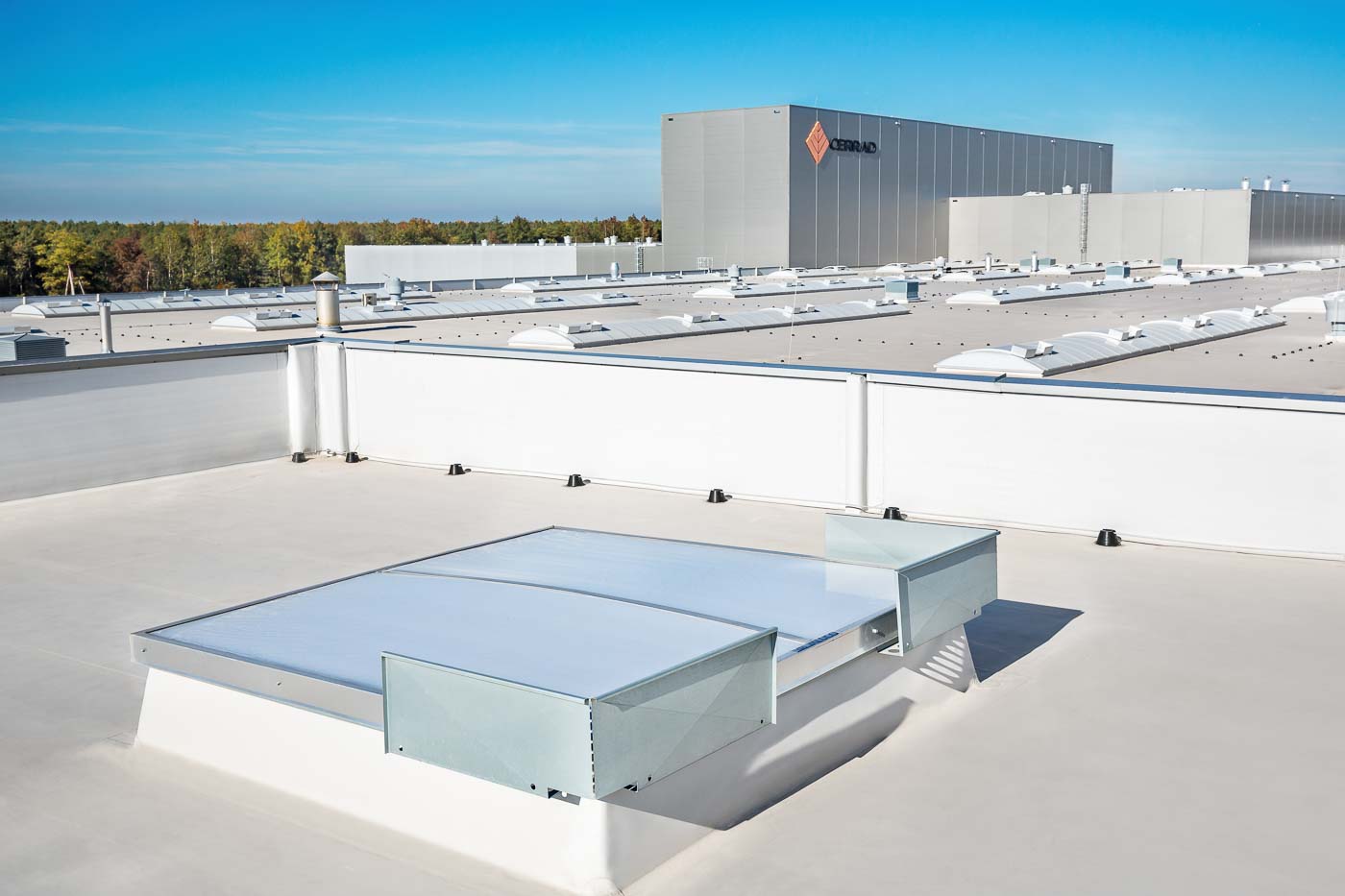

ALUCO FIRE SP
Spot Smoke Vents
Our innovative spot smoke vents are installed in the most technologically advanced industrial facilities. Their flawless and automatic operation ensures comfort and safety for users.
ALUCO FIRE SP are spot smoke vents that play a crucial role in ventilation and fire protection systems. Designed for selective removal of smoke and hot air, they are installed in specific locations on building roofs. This enables precise and effective fire protection, even in spaces with diverse architectural requirements.
Certification and Safety
The product meets rigorous European standards, including PN-EN 1873, ensuring compliance with regulations and safety of use. The vents are designed to operate in challenging conditions and can be used as part of larger smoke extraction systems in industrial, warehouse, or commercial buildings.
Quality that exceeds standards
The production and delivery of ALUCO FIRE SP relies on advanced technologies that significantly surpass the level of commonly available solutions on the market. These vents are widely used in the most demanding industrial facilities in Poland and abroad, confirming their reliability and high quality standards.
Advanced Technical Parameters
ALUCO FIRE SP combines high thermal insulation with dimensional flexibility, making it one of the most comprehensive solutions available in the smoke extraction systems market. Optional additional elements, such as anti-fall grids or aerodynamic deflectors, allow the vents to be adapted to the specific needs of each project.
Flexible dimensions and design
- Maximum dimensions: up to 2000 mm x 3000 mm.
- Base versions: straight or straight-slanted, adapted to the specific requirements of the building.
Strength and resistance
- Opening angle: up to 160° for effective smoke extraction.
- Temperature resistance class: B 300.
- Snow load: SL 2000, wind resistance: WL 1500.
Materials and certification
- Construction based on aluminum profiles, ensuring durability and lightness.
- Meets the requirements of PN-EN 1873 standard with CE marking.
Control and configuration options
- Drive mechanisms: pneumatic or electric.
- Option to equip with anti-fall grids and additional deflectors to improve aerodynamic efficiency.

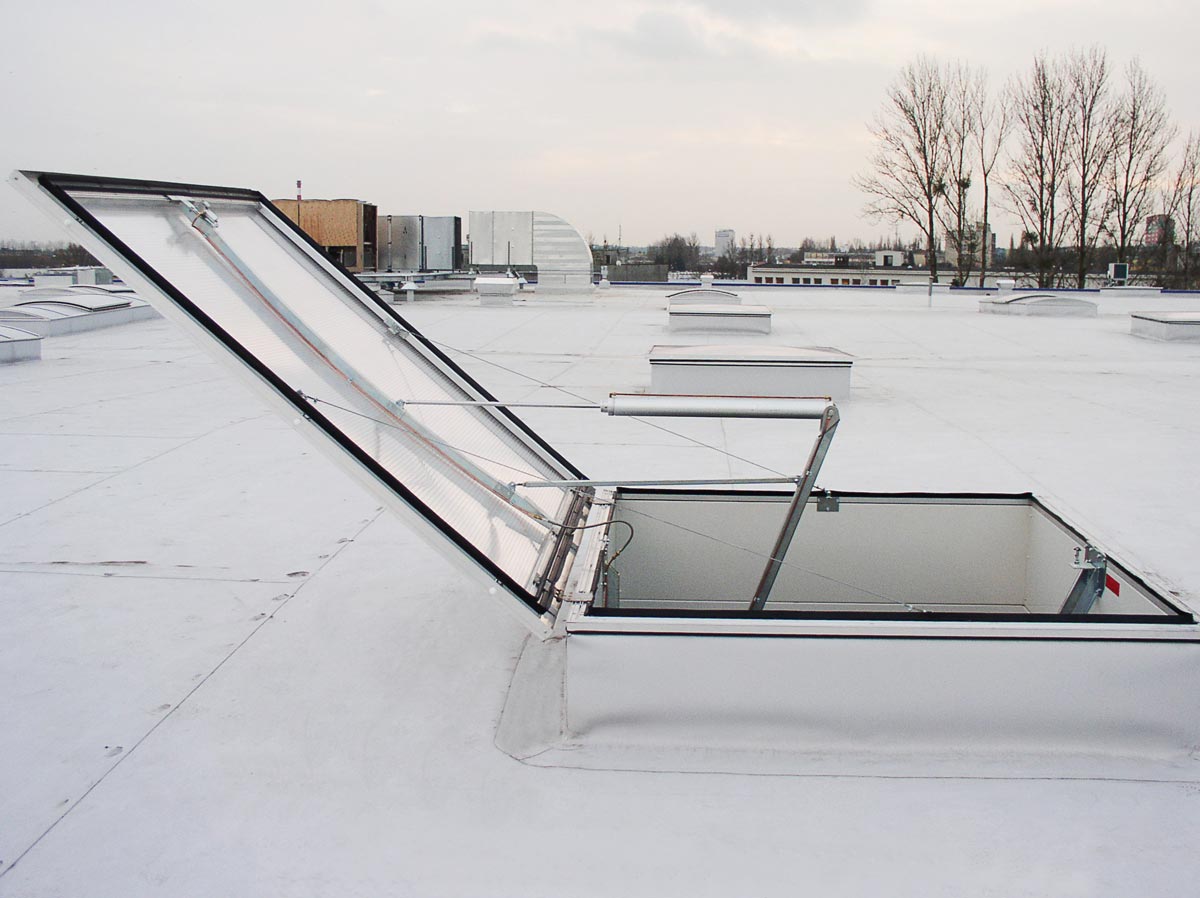

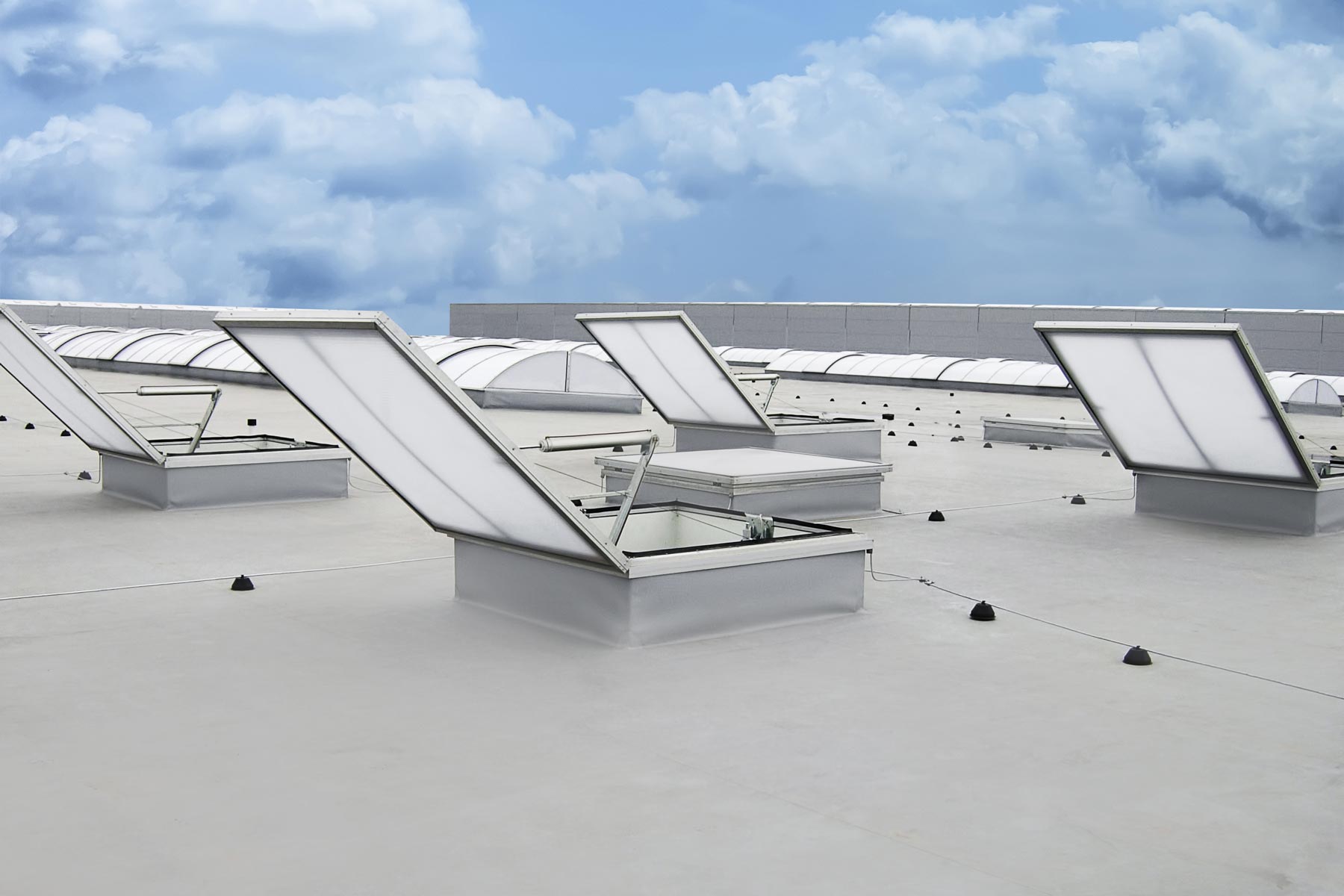

ALUCO FIRE SP 1P
Single-leaf smoke vents
ALUCO FIRE SP 1P single-leaf smoke vents feature a simpler construction and are the perfect solution for smaller roof-mounted point skylights. They are lightweight, easy to install, and ideal for areas with limited space. Thanks to their compact dimensions, these vents work excellently in locations where precise control and smaller opening areas are required.

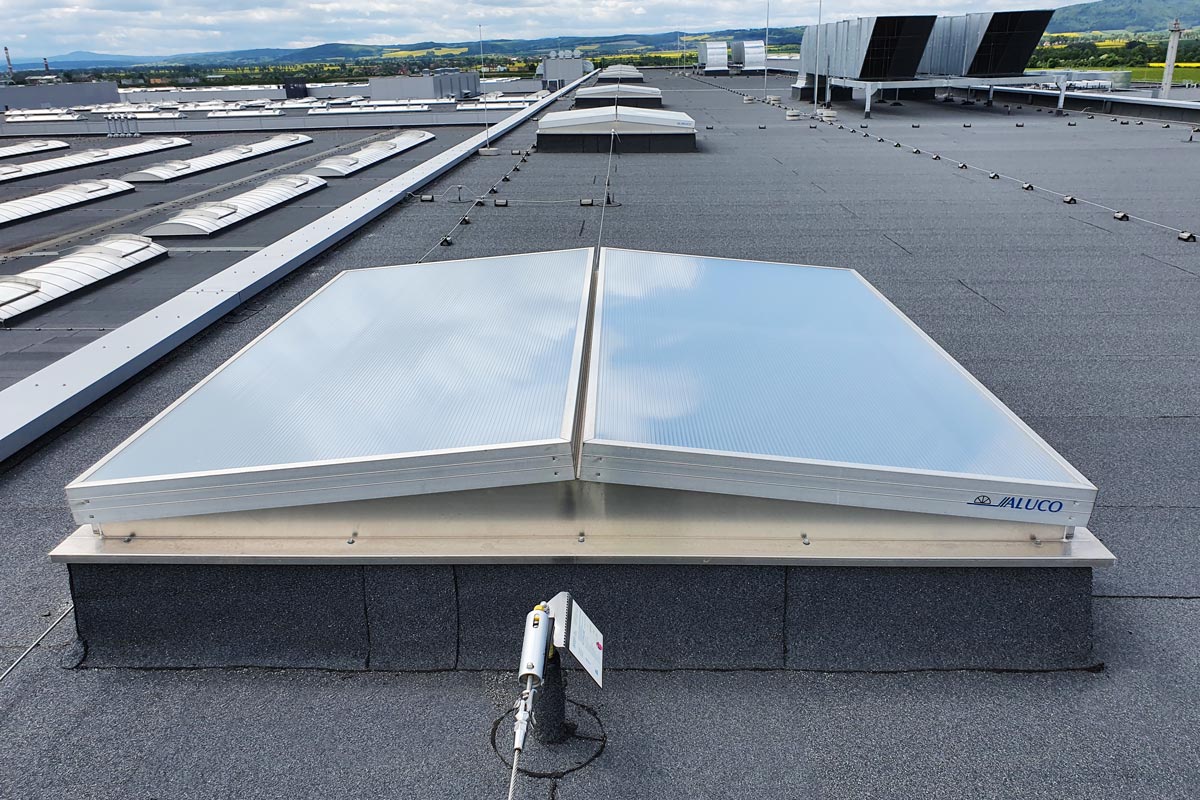

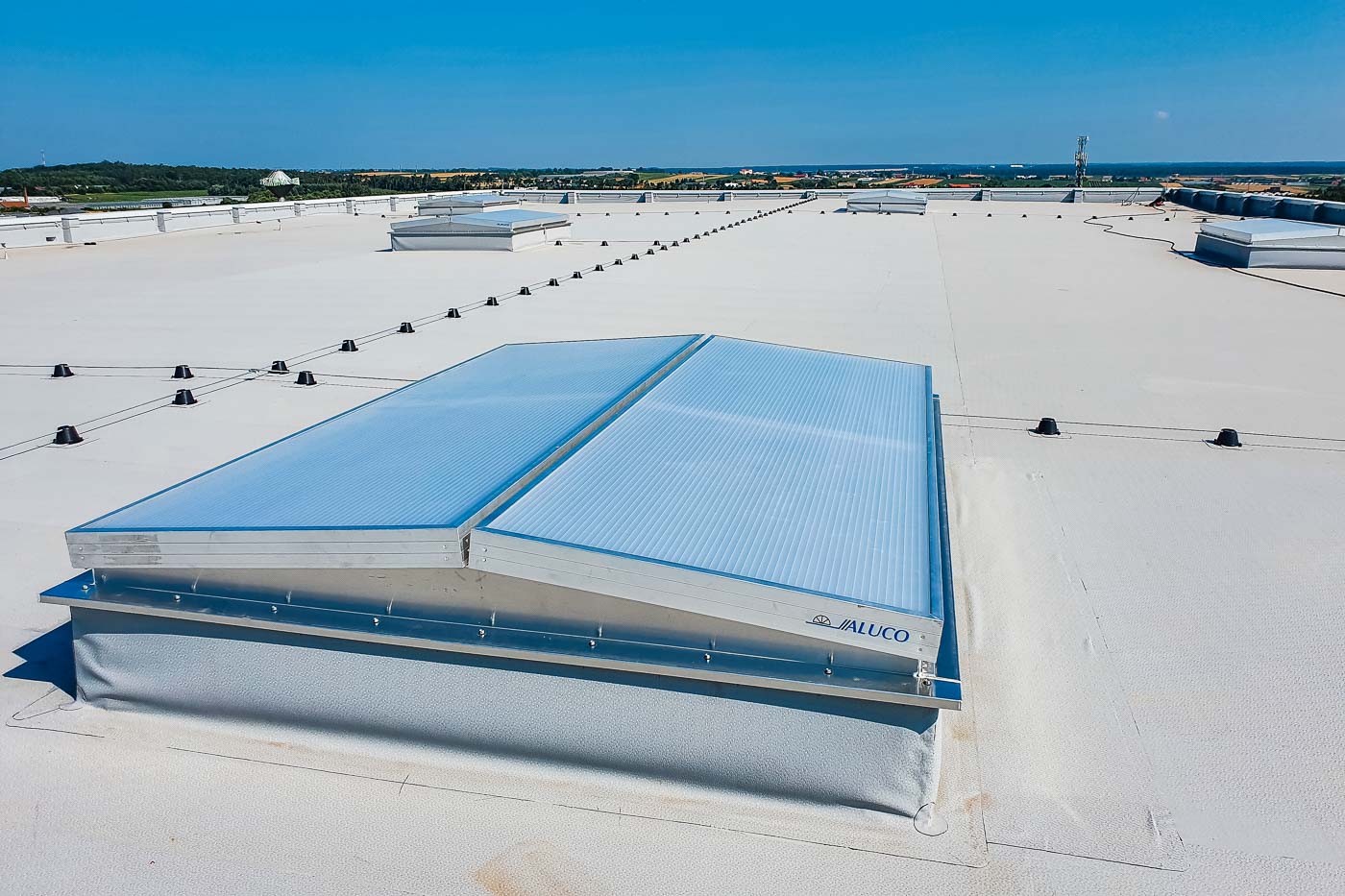

ALUCO FIRE SP 2P
Double-leaf smoke vents
ALUCO FIRE SP 2P double-leaf smoke vents offer a larger opening area, making them suitable for larger point skylights. This design allows for more efficient smoke extraction in a shorter time, which is crucial in buildings with large volumes. They are recommended for buildings where more intensive airflow is required.
ALUCO FIRE SP is used in buildings that require a precise and compact smoke extraction system.
- Single-leaf vents
- Top floors of multi-story buildings with limited roof space.
- Technical rooms where installation space is limited.
- Smaller industrial halls, warehouses, and public buildings.
- Double-leaf vents
- Industrial and warehouse halls with large volumes.
- Shopping centers and sports facilities requiring larger smoke extraction areas.
- Buildings with advanced fire safety requirements and the need for intensive ventilation.

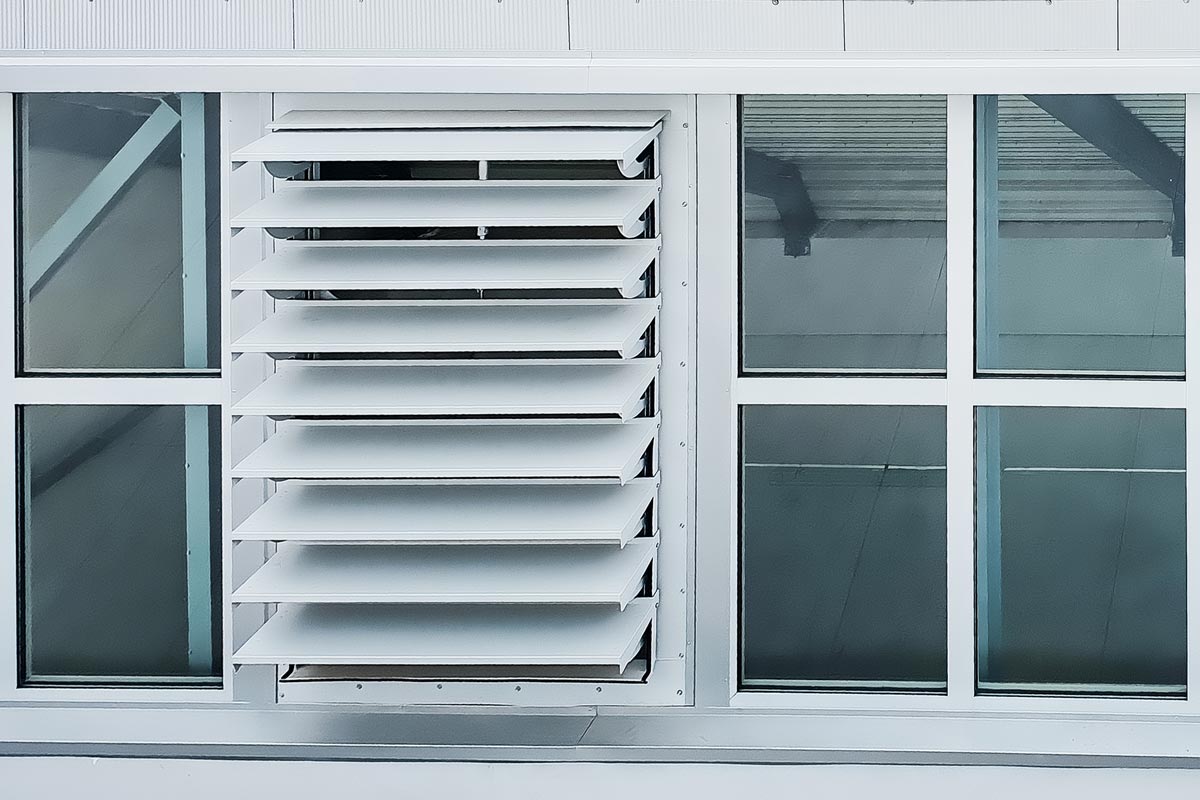

ALUCO VENTRA
Louvre Vents

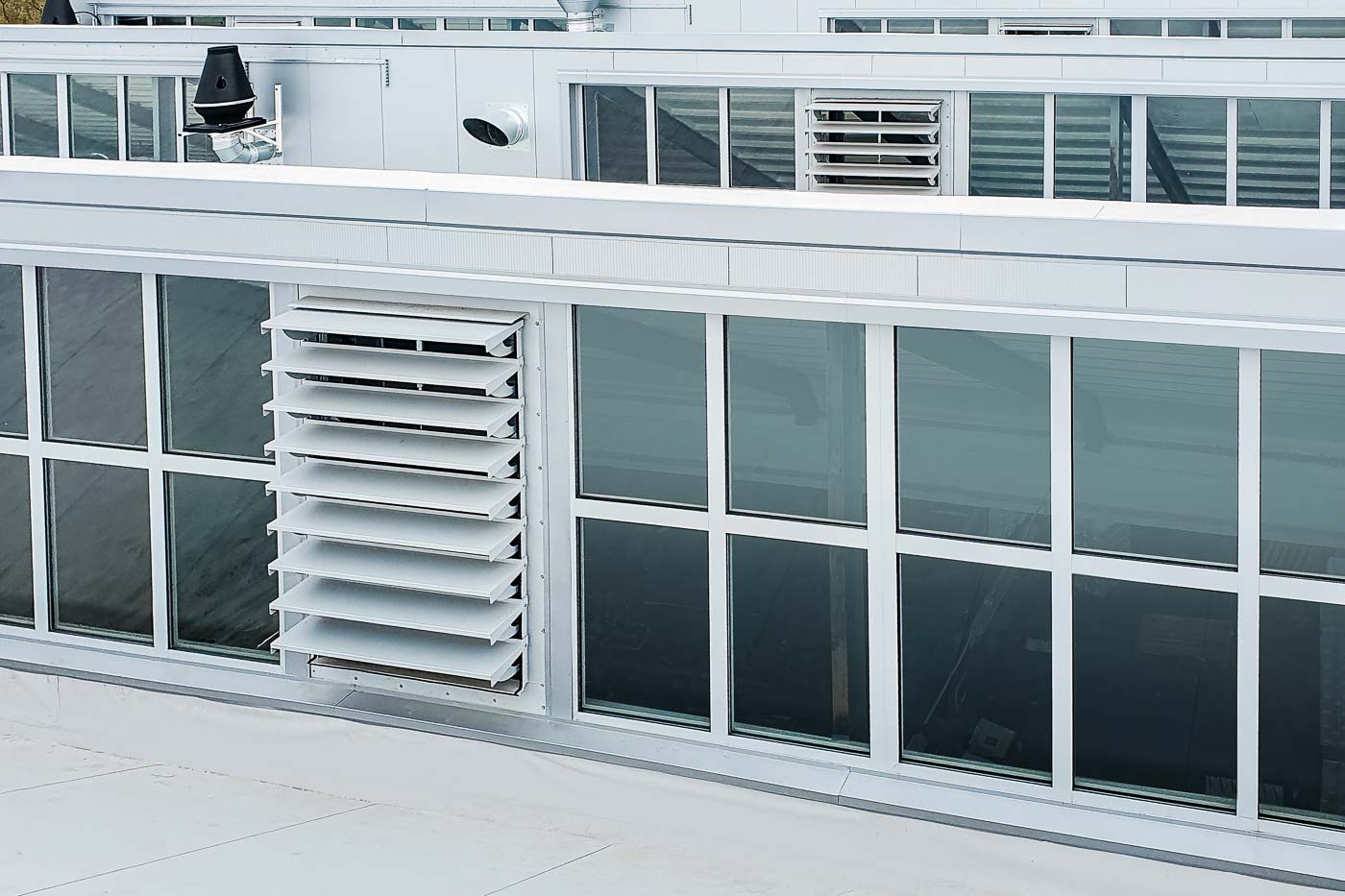

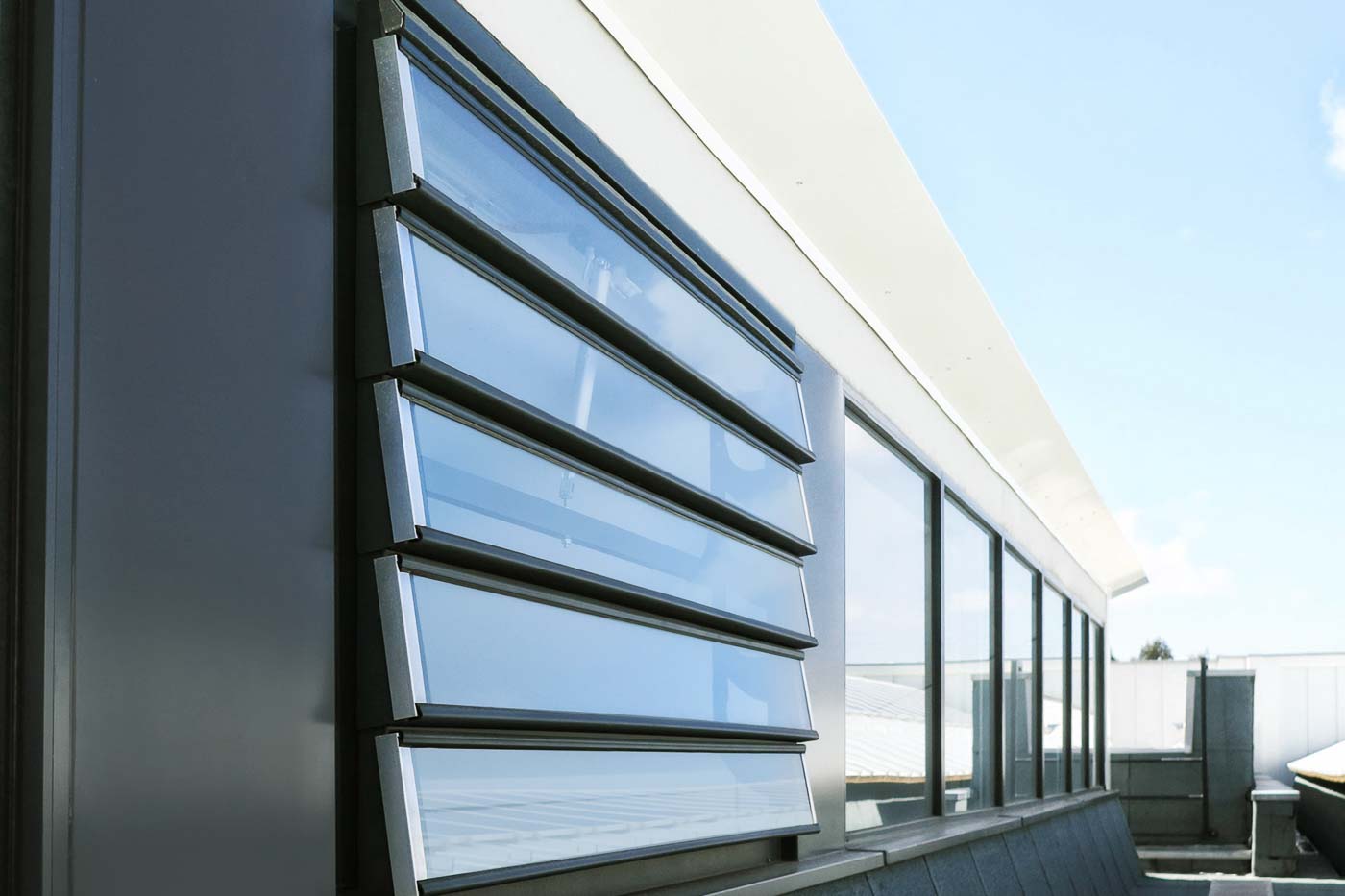

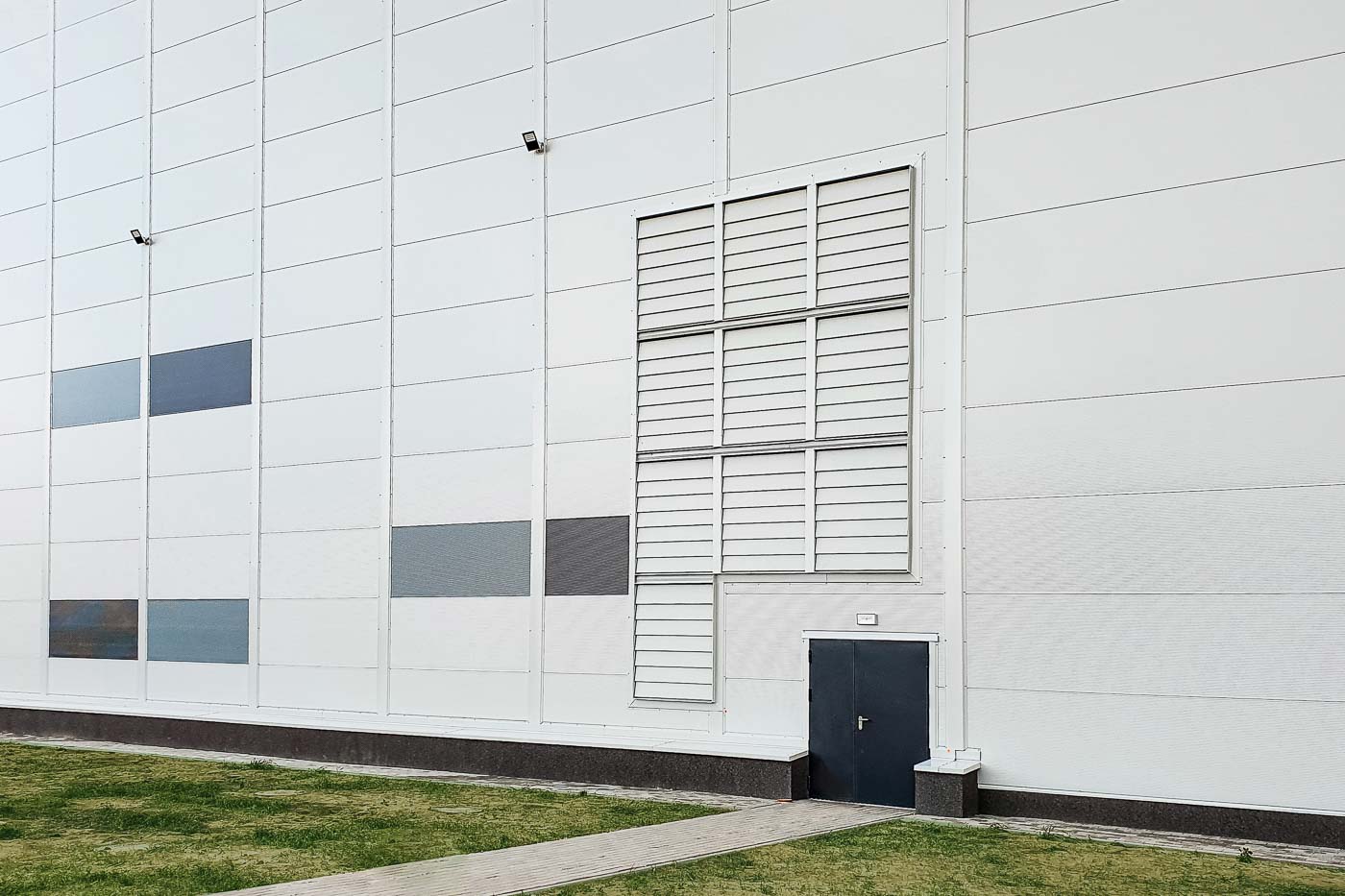

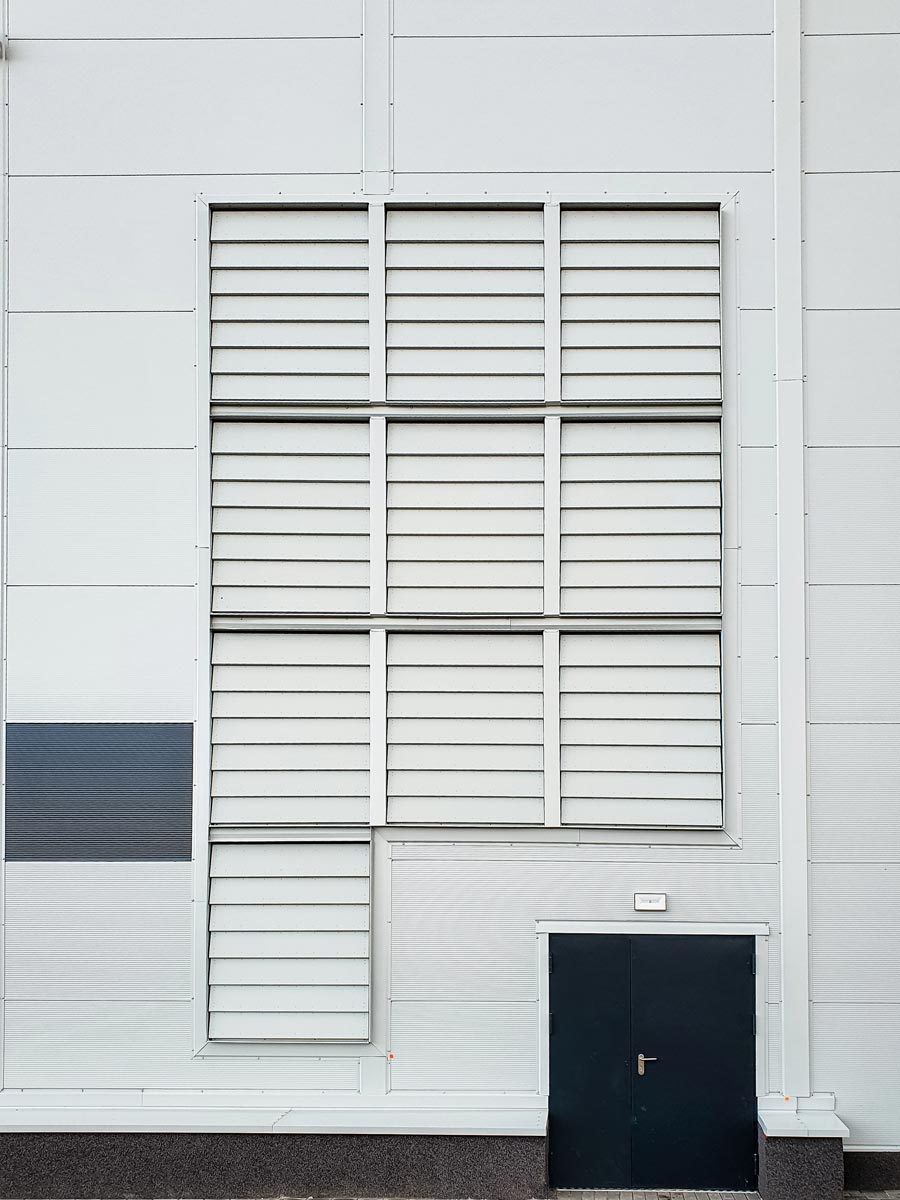

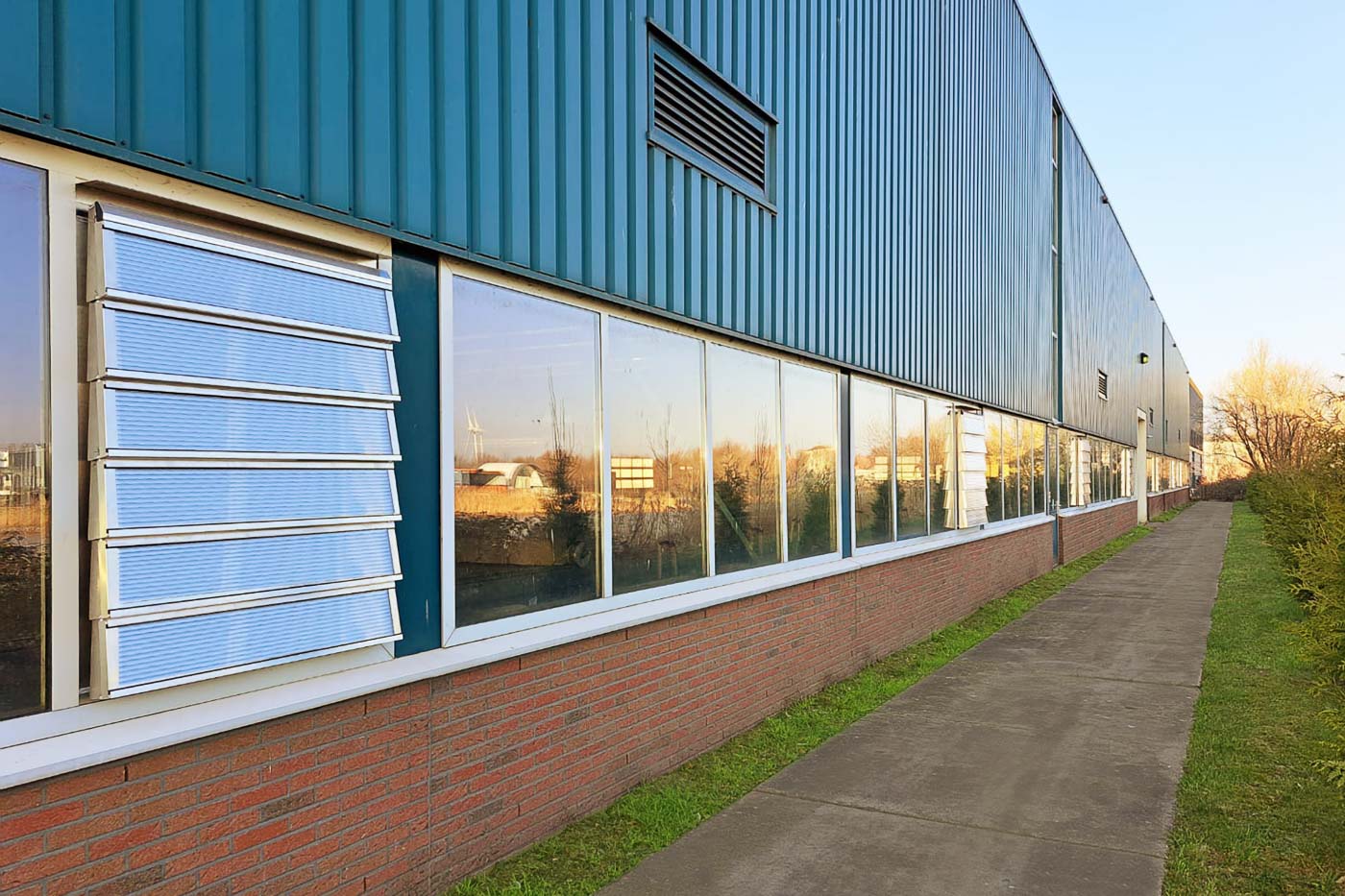

ALUCO VENTRA smoke and ventilation vents can be successfully used in all types of industrial and commercial buildings as facade vents or in vertical skylights, such as shed roofs. These vents combine smoke extraction with interior ventilation.
ALUCO VENTRA is an advanced louvre smoke vent system that combines smoke extraction with interior ventilation. Thanks to its unique design, these vents provide effective fire protection while supporting daily ventilation. They are made of high-quality materials, such as aluminum, ensuring durability and resistance to harsh weather conditions.
Versatility of Applications
ALUCO VENTRA vents can be used in both shed roof skylights and on building facades. They can be installed in a variety of industrial buildings, such as production halls, warehouses, and logistics centers. Their high fire resistance and innovative automatic control system make it one of the most efficient solutions available on the market.
Advanced Control and Automation
The ALUCO VENTRA system is equipped with modern control solutions that allow automatic response of the vents to environmental conditions such as temperature, smoke presence, or pressure changes. Drive mechanisms, available in electric or pneumatic versions, allow precise opening and closing of the louvres, increasing the efficiency of ventilation and smoke extraction. The system can also be integrated with Building Management Systems (BMS), enabling comprehensive control of all installations in the building from one location.
Construction and Materials
- Moving louvres made of aluminum or steel, ensuring mechanical resistance and protection against corrosion.
- Can be installed on roofs (shed skylights) or facades.
Automation and Control
- Automatic control system that responds to environmental conditions (temperature, smoke).
- Drive options: electric or pneumatic, allowing precise regulation.
Resistance and Performance
- High temperature resistance (class B 300).
- Effectiveness in removing smoke, hot air, and toxic gases due to the optimal louvre opening angle.
ALUCO VENTRA is a series of louvered vents widely used in industrial, commercial, and public buildings, providing reliable ventilation and fire protection.
- Industrial Facilities
Ideal for production halls, industrial plants, and warehouses, ensuring effective air exchange and smoke extraction in case of fire. - Commercial Buildings
Suitable for shopping centers and office buildings, combining ventilation, air circulation, and fire safety functions. - Public Buildings
Perfect for schools, sports arenas, theaters, and other high-occupancy spaces where thermal comfort and air quality are priorities. - Technical Buildings
Reliable for pump stations, power plants, and other technical facilities requiring robust ventilation systems and smoke extraction. - Modern Facades and Roofs
Can be installed in building facades or sawtooth roofs, prioritizing both aesthetics and functionality.
The control of ALUCO VENTRA hatches has been designed for quick response to hazards and daily user comfort. Automatic systems allow the adjustment of hatch operation to changing environmental conditions, providing full control over ventilation and smoke extraction at all times.
Automatic control of louvre hatches allows for a quick response in emergency situations, such as fire, increasing the safety of life and property. Precise air flow regulation according to environmental conditions also reduces ventilation costs, making the system more efficient in daily use.
Control systems can be integrated with alarms and other safety systems, allowing for the rapid activation of hatches in critical situations. The ability to remotely manage louvre hatches is particularly useful in large buildings where remote adjustment is necessary.
